Chart Examples (For
Pre-Summer 2005 Reference)
The following are a list of examples of charts created with
changes to the overall format in order to help you better understand the many
properties of the Chart Display Advanced Web Part.
|
|
|
Chart Data: |
<Group>Not Started;Count(Title);Status='Not
Started';0xCC0000;50<Group>In Progress;Count(Title);Status='In
Progress';0x000099;40<Group>Completed;Count(Title);Status='Completed';0x009900;30<Group>Deferred;Count(Title);Status='Deferred';0xFFFF00;20<Group>Waiting;Count(Title);Status='Waiting
on someone else';0x990099;10 |
|
Chart Properties: |

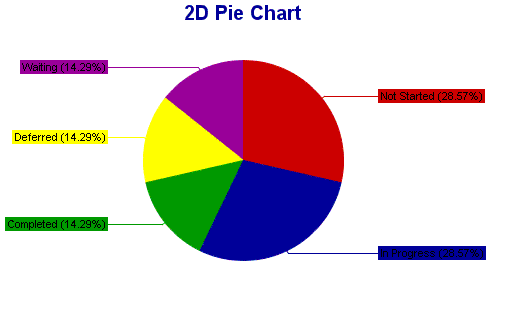

2D Pie
Chart,,15,0x000099;;490,320;245,160,100 |
|
Chart URL: |
default.aspx |
|
Image Format: |
image/gif;0 |
|
|
|
|
Chart Data: |
<Group>Not Started;Count(Title);Status='Not
Started';0xCC0000;50<Group>In Progress;Count(Title);Status='In
Progress';0x000099;40<Group>Completed;Count(Title);Status='Completed';0x009900;30<Group>Deferred;Count(Title);Status='Deferred';0xFFFF00;20<Group>Waiting;Count(Title);Status='Waiting
on someone else';0x990099;10 |
|
Chart Properties: |

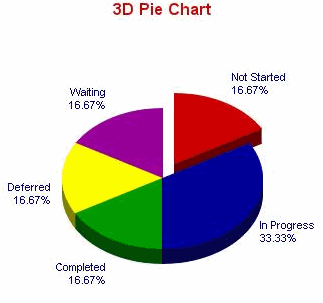

3D Pie
Chart,,13,0xcc0000;,8,0x000099;320,300;160,180;false;true |
|
Chart URL: |
http://site/Lists/Tasks/AllItems.aspx |
|
Image Format: |
image/gif;0 |
|
|
|
|
Chart Data: |
<Group>Not Started;Count(Title);Status='Not
Started';0x80CC0000;50<Group>In
Progress;Count(Title);Status='In
Progress';0x80000099;40<Group>Completed;Count(Title);Status='Completed';0x80009900;30<Group>Deferred;Count(Title);Status='Deferred';0x80FFFF00;20<Group>Waiting;Count(Title);Status='Waiting
on someone else';0x80990099;10 |
|
Chart Properties: |

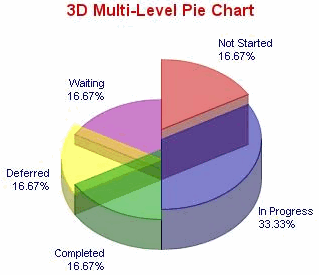

3D Multi-Level Pie
Chart,,13,0xcc0000;,8,0x000099;320,300;160,180;false;true |
|
Chart URL: |
http://site/Lists/Tasks/AllItems.aspx |
|
Image Format: |
image/jpeg;1 |
|
|
|
|
Chart Data: |
<Group>CO;Sum(Amount);State='CO';0x996600;<Group>VA;Sum(Amount);State='VA';0x009933;<Group>WA;Sum(Amount);State='WA';0x000099;<Group>Other;Sum(Amount);State
is Null;; |
|
Chart Properties: |

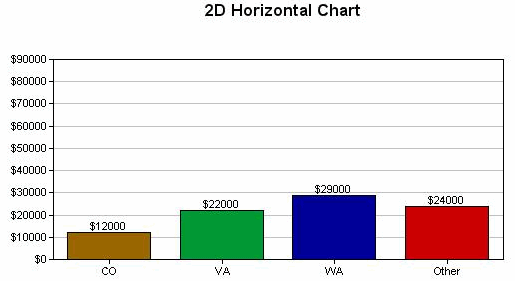

2D Horizontal
Chart;;;;,,15,0x000000,${value};;;;;sum(Amount);${value} |
|
Chart URL: |
default.aspx;title='{label}:
US${value}' |
|
Image Format: |
image/jpeg;1 |
|
|
|
|
Chart Data: |
<Group>Developer;Count([Order
Reference]);[Products
Purchased]LIKE'*Developer*';;<Group>Professional;Count([Order
Reference]);[Products
Purchased]LIKE'*Professional*';;<Group>Project;Count([Order
Reference]);[Products
Purchased]LIKE'*Project*';;<Group>MWO;Count([Order
Reference]);[Products Purchased]LIKE'*MyWorkplace For
Outlook*';; |
|
Chart Properties: |

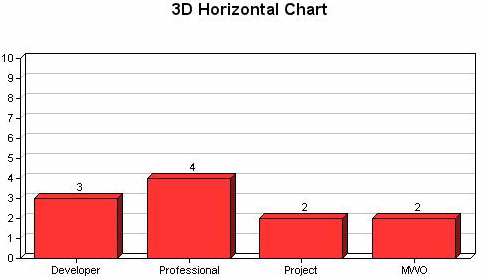

3D Horizontal Chart;;;;;;;;;10 |
|
Chart URL: |
default.aspx |
|
Image Format: |
image/jpeg;1 |
|
|
|
|
Chart Data: |
<Percentage><Group>Not
Started;Count(Title);Status='Not Started';0xCC0000;50<Group>In
Progress;Count(Title);Status='In
Progress';0x000099;40<Group>Completed;Count(Title);Status='Completed';0x009900;30<Group>Deferred;Count(Title);Status='Deferred';0xFFFF00;20<Group>Waiting;Count(Title);Status='Waiting
on someone else';0x990099;10 |
|
Chart Properties: |

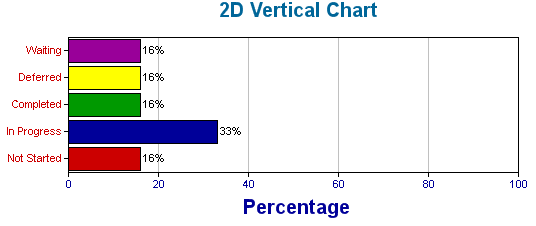

2D Vertical
Chart,,15,0x006699;,8,0xCC0000;Status,,15,0xCC0000;,8,0x000099;Percentage,,15,0x000099;600,250;70,40,450,135;;true;count;{value}
Task(s) |
|
Chart URL: |
http://site/lists/tasks/allitems.aspx |
|
Image Format: |
image/gif;0 |
|
|
|
|
Chart Data: |
<Percentage><Group>Not
Started;Count(Title);Status='Not Started';0xCC0000;50<Group>In
Progress;Count(Title);Status='In
Progress';0x000099;40<Group>Completed;Count(Title);Status='Completed';0x009900;30<Group>Deferred;Count(Title);Status='Deferred';0xFFFF00;20<Group>Waiting;Count(Title);Status='Waiting
on someone else';0x990099;10 |
|
Chart Properties: |

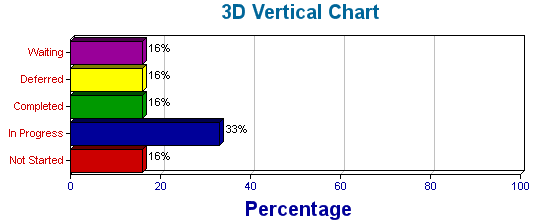

3D Vertical
Chart,,15,0x006699;,8,0xCC0000;Status,,15,0xCC0000;,8,0x000099;Percentage,,15,0x000099;600,250;70,40,450,135;;true;count;{value}
Task(s) |
|
Chart URL: |
http://site/lists/tasks/allitems.aspx |
|
Image Format: |
image/gif;0 |
|
|
|
|

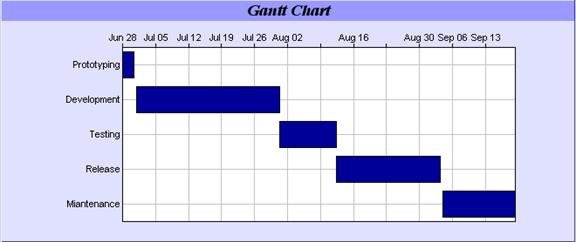

Chart Data: |
<Group>Title;Start Date;Due
Date;0x000099 |
|
Chart Properties: |
|
|
Chart URL: |
http://site/lists/tasks/allitems.aspx |
|
Image Format: |
image/gif;0 |
|
